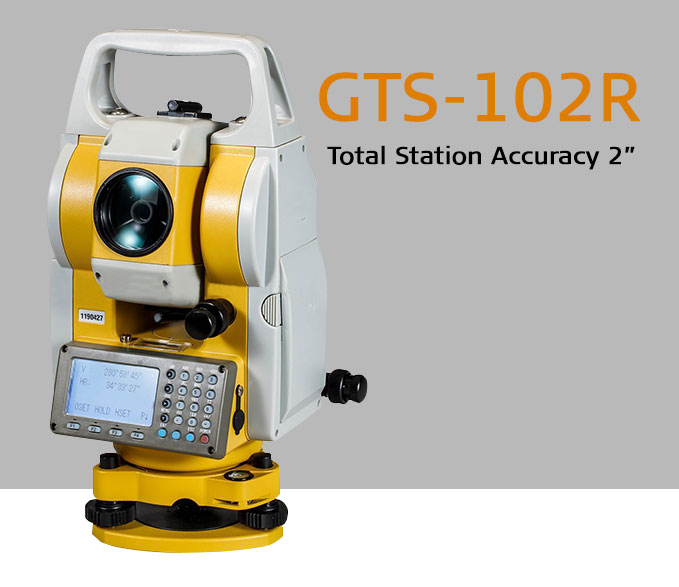

Reflectorless Total Station (GTS-102R)

Our newly developed GTS-100 series is completely technically compatible with Topcon GTS102N and GTS-105N

Installed with Bluetooth Communication System, Prism-free Ranging, Laser Alignment, and other functions

One key for Angle Measurement,Ranging ,Coordinate,Lofting,etc;

Expanded, full numeric Keypad; on-board Programs and up to 24,000-point Data Storage;

Highly precise and stable, ergonomically designed and user-friendly to entry-level;

Perfect when combined with FC field controller and software;

Installed with Laser Pointer for quick targeting and precise measuring;

Built-in Laser Plummet for efficient setting up on surveying point, and optical Plummet optional;

Auto-compensation function for monitoring the system leveling and eliminating leveling errors;

Multilingual: English,French,Spanish,German,Portuguese,Turkish;

Wide applications ideal for professional surveyors.

Telescope

Magnification: 30x

Image: Erect

Objective Aperture: 45mm (EDM: 50mm)

Tube Length: 150mm

Field of View: 1º30'

Resolution Power: 3.0"

Shortest Focusing Distance: 1.3m

Reticule Illumination: Provided

Accuracy: 2" (0.6mgon)

Measuring Mode: Absolute Reading

Detecting System: Horizontal Angle: 2-sided; Vertical Angle:1-sided

Minimum Reading: 1" (0.2mgon) or 5" (1mgon)

Measurement Time: ≤0.3sec.

Diameter of Circles (HZ and V): 71mm

Tilting Sensor: Liquid-type, automatic Vertical Compensator

Correction Range: ±3'

Correction Unit: 1" (0.1mgon)

LCD and Keyboard:2 sided, black and white; Pixel 160×64; dot matrix graphic, numeric keys and functional Keys (24)

Data Interface: RS-232,USB

Dada Format: ASCII,DXF,CSV,PTS
