R1 Plus Total Station

The companion of every PROFESSIONAL SURVEYOR

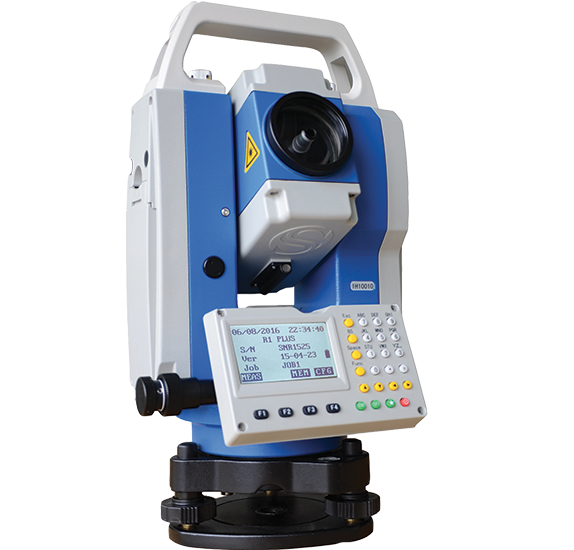

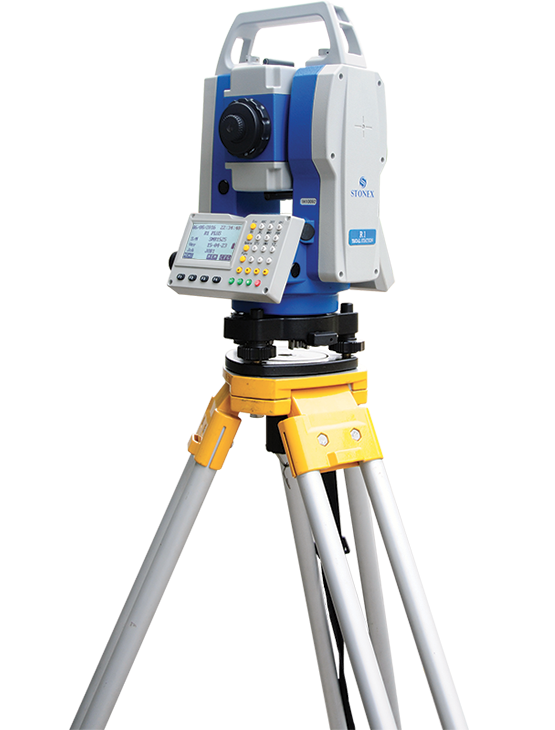

Stonex R1 Plus Total Station, precise distance and angles measurements, concentrated in 5 Kg of pure technology.

The perfect tool whenever the topographic works requires a light and fast machine, all day working thanks to 26 hours of continuous operating time. The onboard field programs, included as standard, make R1 Plus suitable for any construction site, cadastral, mapping and staking out, works.

No limitation for distance measurements, up to 5.000 m with a single prism – 600 m reflectorless (KGC 90%) – and 2” as angular accuracy, always guarantee a reliable points calculation.

R1Plus has been designed to hold out against rain and dust: the IP66 certification allows to go ahead with the survey even during hard rain. The body design is distinguished by its robust mechanical structure, and the high performance telescope, featuring 30X magnification and illuminated reticle, provide the best sighting quality in any lighting condition.

LONG DISTANCE MEASUREMENTS

Thanks to the high efficiency EDM, R1 Plus guarantees long distance measurements: 600m in reflectorless mode and up to 5.000m using a single prism, with millimeter accuracy.

FAST, ACCURATE, RELIABLE

Measuring distances in one second, with 2mm accuracy, makes any job extremely cost effective and reliable. The wide range of application software allows to complete the Surveyor’s tasks directly in the field.

3 DAYS OF FIELD WORK

The low power consumption circuit design and to the two high capacity batteries allow to continuously work for 26 hours and to measure over than 1.000 distances. The SD card up to 16 Gb can store an huge amount of data.

HIGH PROTECTION GRADE

IP66 dustproof/waterproof rating ensures R1 Plus’s high reliability in all weather conditions and allows to continue working even under very humid conditions and where sand and dust are present.
