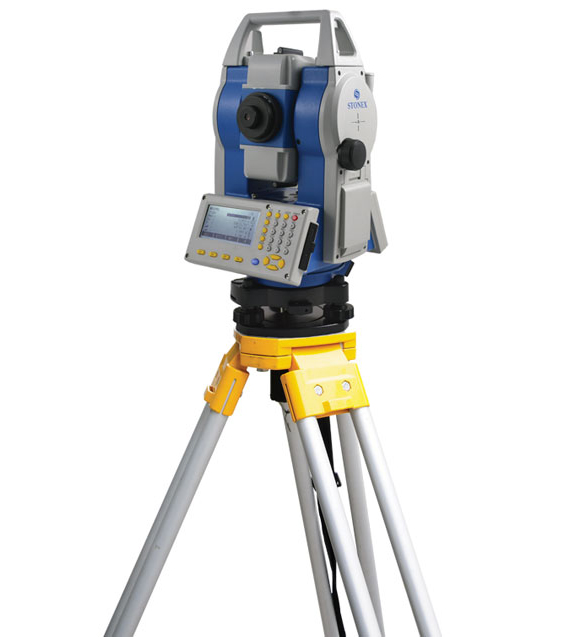

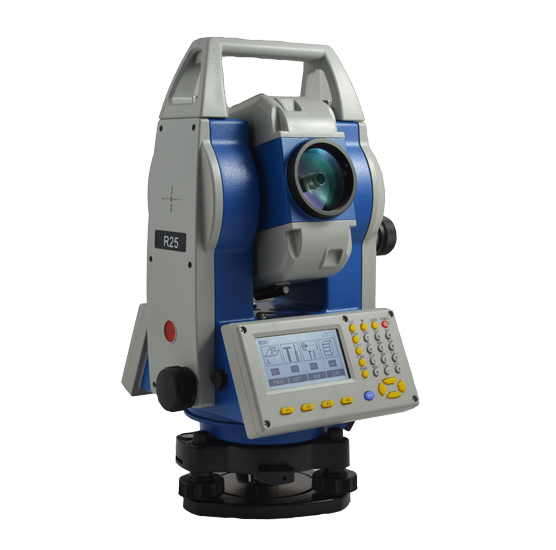

R25 Total Station

High Precision TOTAL STATION.- With Endless Drives and Trigger Key

High accuracy and long reflectorless range are the perfect combination that makes Stonex R25/R25LR the best friend of every professional surveyor.

Cadastral, mapping, staking out, and up to high precision monitoring works: within the range of R25/R25LR Series, you will find the solution that fits your needs.

R25/R25LR comes standard with integrated onboard field software, a complete suite of applications, and an external controllers can be linked to Stonex R25/R25LR, through the Bluetooth™ wireless connection: no limitation will stop your working process.

Stonex R25/R25LR features endless friction drives for continuous horizontal and vertical rotations: no more knobs and clamps with limited movements but a more comfortable use of the station. The trigger key on the side of the instrument allows you to start the measurement very easily.

LIMITLESS DISTANCE MEASUREMENTS

By using digital phase laser ranging technology, R25/R25LR guarantees high accuracy long range measurements: 600/1000m in reflectorless mode and up to 5000m using a single prism, with millimeter accuracy.

FAST, ACCURATE, RELIABLE

Measuring distances in one second, with 2mm accuracy, makes any job extremely cost effective and reliable. The wide range of application software allows to complete the Surveyor’s tasks directly in the field.

ONE DAY OF CONTINUOUS FIELD WORK

Thanks to the low power consumption circuit design and to the two high capacity batteries R25/R25LR gives the opportunity to continuously work for around 13 hours. No concern for data storage: the improved 4 Gb internal memory and the SD card up to 16 Gb store an huge amount of data.

TEMPERATURE PRESSURE SENSORS

Temperature and pressure changes have a negative impact on the accuracy of distance measurements: the smart R25/R25LR monitors the changes and automatically adjusts the distance calculations.

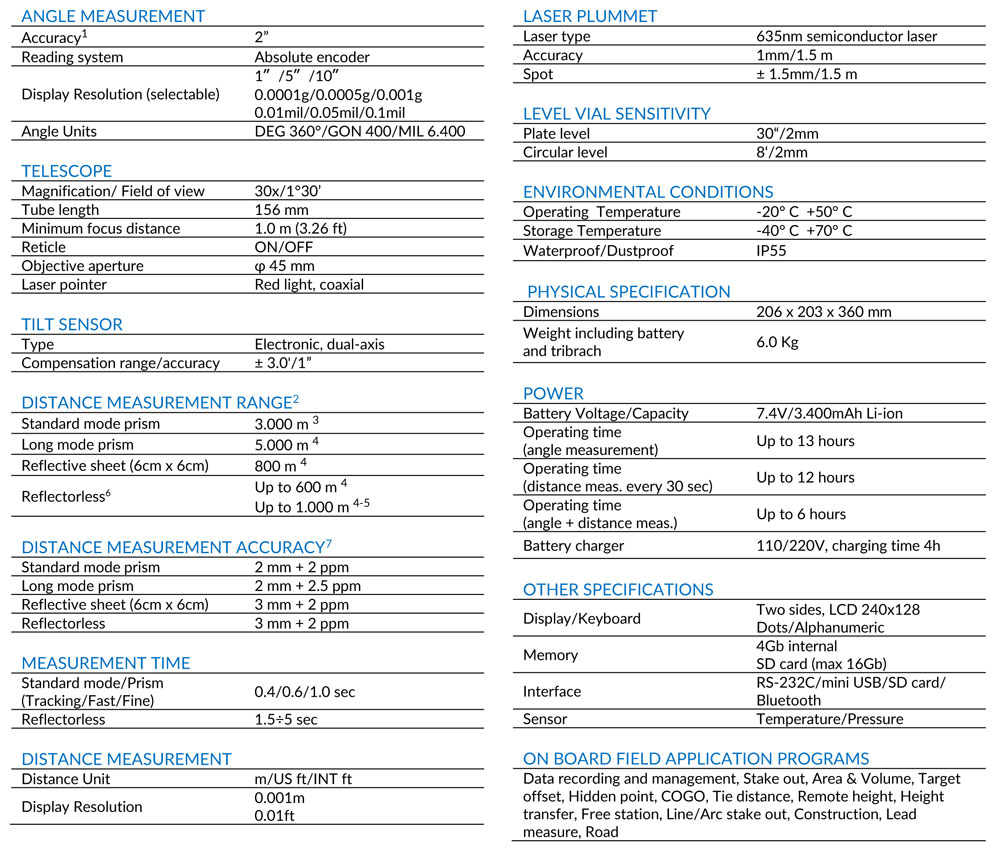

Datasheet
