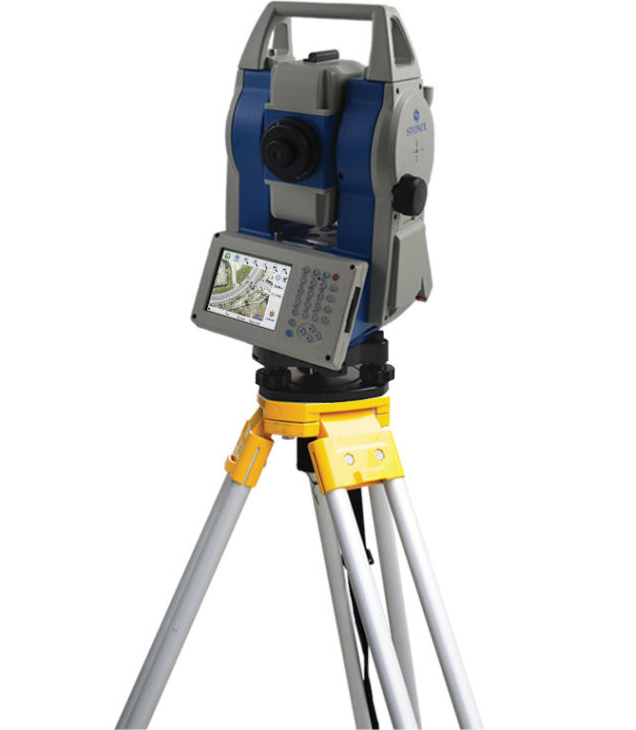

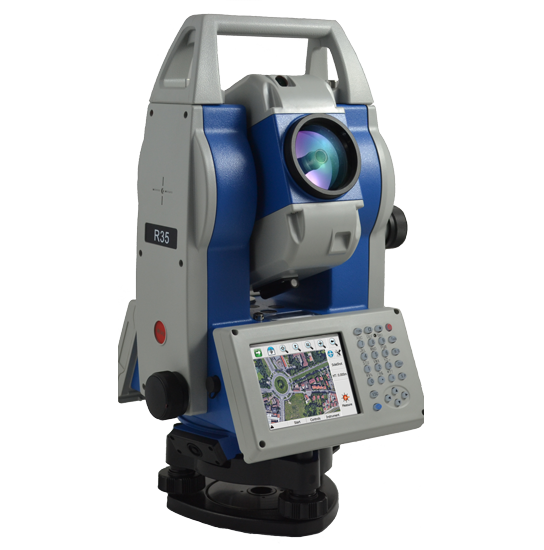

R35/R35LR Total Station

High Precision TOTAL STATION.- Now with Endless Friction Drives and Trigger Key

Stonex R35/R35LR series is the most customizable Total Station of the market. Depending on the User needs, R35/R35LR comes with endless friction drives for continuous horizontal and vertical rotations, 2” accuracy and 600/1000 m reflectorless range.

This advanced Total Station is fully customizable: each user can choose the software that best suits own needs. Several onboard software to be choosen, such as Microsurvey FieldGenius, Carlson SurvCE, ANTAS Mobile and many Custom field applications.

In addition the TFT 320×240 touch screen display on both sides gives the Surveyor a clear, colourful and fully graphical environment, and the user friendly on board software supports the users with guided through functions for data collection, topographic surveys, staking out.

The high-precision class 3 EDM featuring millimeter accuracy even on long range distances, and the absolute encoders performing high precision angles measurements, provide reliable points calculation in every condition.

UP TO 600/1000 m REFLECTORLESS

By using digital phase laser ranging technology, R35/R35LR guarantees high accuracy long range measurements: up to 600/1000 m in reflectorless mode and up to 5000 m using a single prism, with millimeter accuracy.

TEMPERATURE PRESSURE SENSORS

Temperature and pressure changes have a negative impact on the accuracy of distance measurements: the smart R35/R35LR monitors the changes and automatically adjusts the distance calculations.

CHOOSE YOUR FAVORITE ONBOARD SOFTWARE

By choosing R35/R35LR you are not forced to use the manufacturer software! A wide range of well known field software are compatible, and the user can even create his own application onboard.

FAST, ACCURATE, RELIABLE

Measuring distances and angles in one second, with mm accuracy, makes any job extremely cost effective and reliable. The big touch screen graphic display facilitates the daily work in the field.

T O T A L S T A T I O N

R35/R35LR
