G N S S

S70G

S70G GNSS RTK

Back

S70G GNSS RTK

Android Handheld GNSS RTK

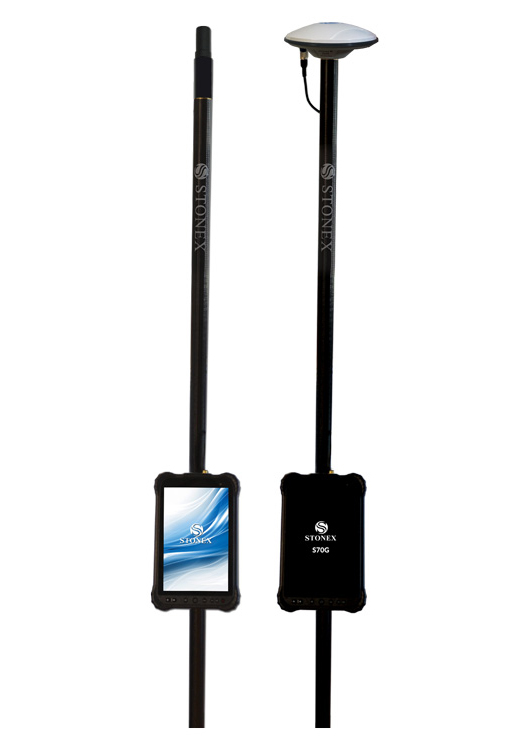

S70G is a 4-constellation dual frequency GNSS system (GPS, GLONASS, Galileo and BeiDou) that allows to collect data and photos in the field, in an easy and fast way. It is supplied with an antenna connected directly to the tablet which guarantees 2cm accuracy, but if required, connecting an external antenna it gains even more precise data.

S70G is equipped with Android 10 operating system and has a highly detailed WUXGA resolution (1920×1200) display for greater detail quality. The 8000mAh battery allows the instrument to work over 8 hours and the IP67 protection makes the device suitable for any environment.

S70G is able to work in real time through the reception of RTK corrections, transmitted by a network of GNSS Permanent Stations. Besides working in real time, it can also record raw data received from satellites for post-processing in the office. This allows the operator to achieve greater precision, enabling to work even in areas where there is not a good coverage of the GSM signal.

MULTI CONSTELLATION

Stonex S70G has a dual frequency GNSS chip integrated that uses all 4 Constellations: GPS, GLONASS, Galileo, BeiDou; all included, no additional cost.

ANDROID SYSTEM

The receiver is managed by the Android 10 operating system with a simple and intuitive interface.

HIGH QUALITY DISPLAY

The high quality 8″ display has a WUXGA resolution (1920×1200) with 500 Nits brightness.

RTK AND POST-PROCESSING

S70G can work in real time with RTK corrections and simultaneously record the raw data for post-processing.

RUGGED

With IP67 Certification Stonex S70G will ensure operations in extremely tough environments.

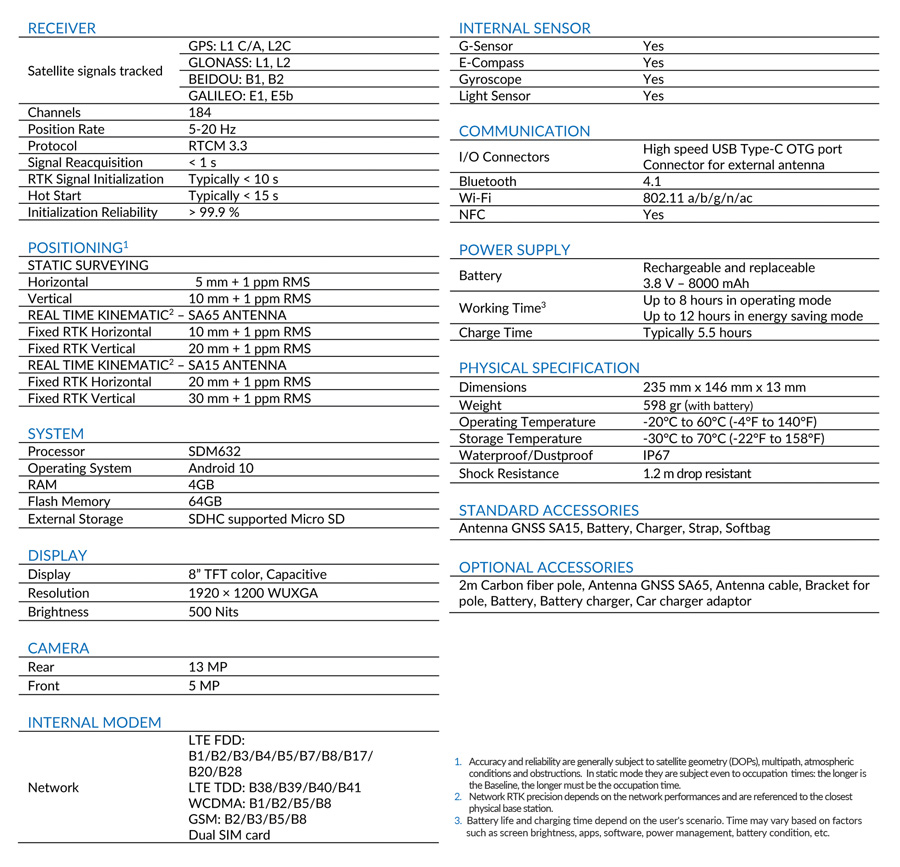

Datasheet

Download
