S900 New GNSS Receiver

Back

S900 New GNSS Receiver

Powerful Precision Performance

S900 is the result of the continuous evolution of the Stonex GNSS integrated receivers. Featuring a high accuracy multi constellation antenna, a powerful UHF dual frequency transmitter and a GSM 4G modem, for a fully integrated multi-communication choice; all combined with a light and modern design.

Stonex S900 integrated GNSS receiver tracks all the present constellations and satellite signals GPS, GLONASS, BEIDOU, GALILEO, QZSS, IRNSS and through the upgradable firmware offers the opportunity to be day by day updated with the latest available features. On S900 it is possible to insert 2 smart hot swappable batteries at the same time, ensuring a maximum of 12 hours of operation without stopping. To initialize, manage, monitor the settings of the receiver and to download data is available a user friendly Web UI.

S900 is also equipped with E-Bubble funcionality and the optional IMU technology. Fast initialization, up to 60° inclination.

What are the performances of the S900 with IMU?

  • Fast initialization
  • Up to 60° inclination
  • 2 cm accuracy 30°
  • 5 cm accuracy 60°
  • Fast and precise survey
  • No problem of electromagnetic disturbances

    • MULTI CONSTELLATION

    Stonex S900 with its 555 channels, provides an excellent on board real time navigation solution with high accuracy. All GNSS signals (GPS, GLONASS, BEIDOU, GALILEO, QZSS and IRNSS) are included, no additional cost.

    DOUBLE FREQUENCY RADIO

    S900 has an integrated UHF double frequency radio, 410-470MHz and 902.4-928MHz. The needs of each country are supported.

    ELECTRONIC BUBBLE + IMU

    S900 thanks to the E-Bubble can display directly on the software if the pole is vertical and the point will be recorded automatically when the pole is levelled. The IMU technology is also available as optional, only a fast initialization is requested.

    TWO INTELLIGENT BATTERIES

    The dual slot for two Smart hot swappable batteries gives you up to 12 hours of battery life. The power level can be checked and seen on the controller or directly on a led bar on the battery.

    4G MODEM

    S900 has an internal 4G modem that operates with all world signals, a fast internet connection is guaranteed.

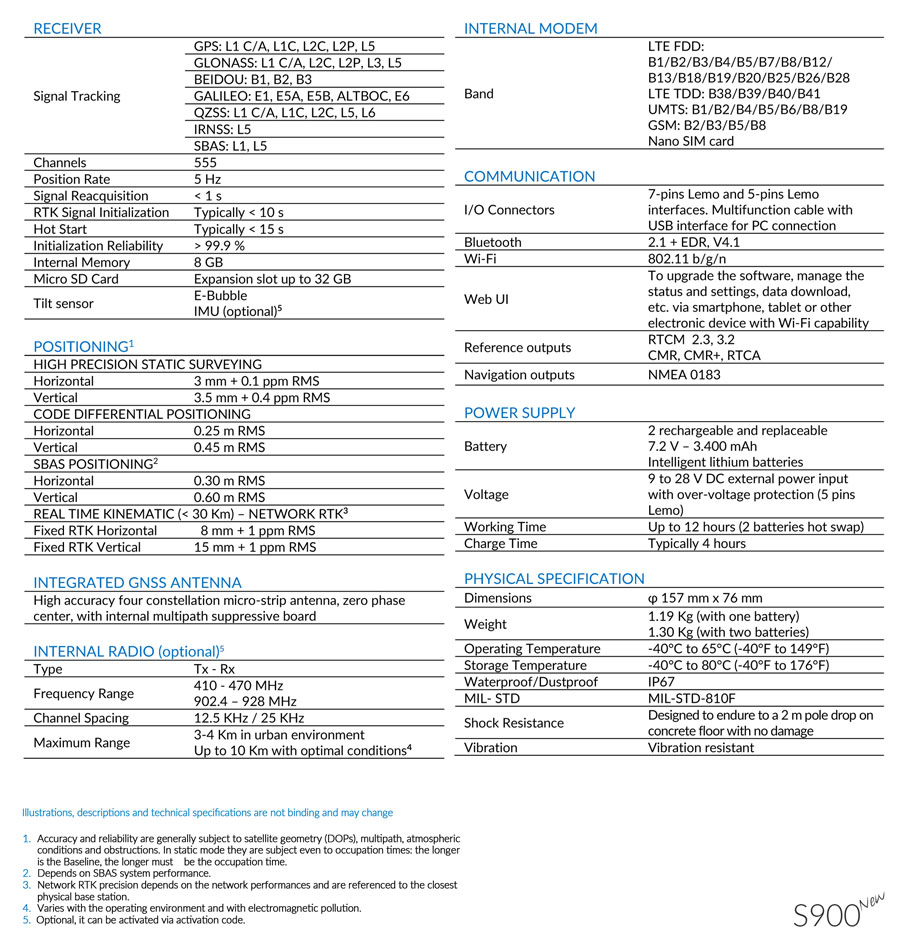

    Datasheet

    Download
