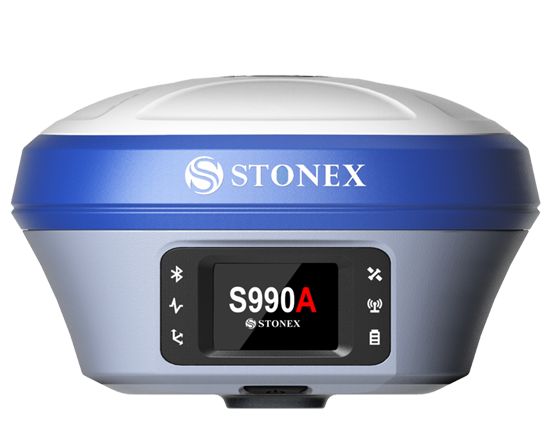

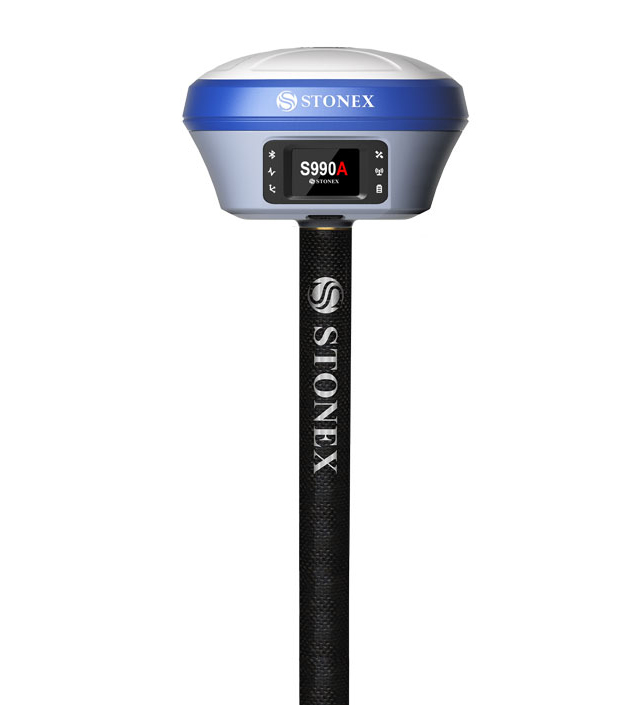

S990A GNSS Receiver

High Performance with Atlas® and IMU

Stonex S990A is a 800 Channels GNSS receiver characterized by a new feature that enhance the performances of field surveys.

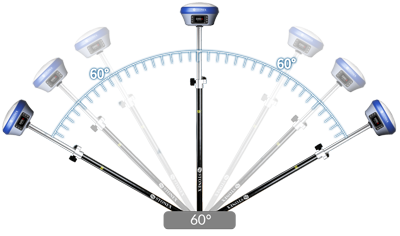

The new IMU System allows tilted measurement (TILT) up to 60°: quick initialization, fast and precise survey.

S990A Receiver is equipped with all important connectivity capabilities: Bluetooth, Wi-Fi, UHF radio and 4G modem. The internal battery of 10.200mAh allows to work for 9 hours and can be recharged via a type-c connector.

The color touch display and the WebUI are an easy and fast way to have the complete control of the receiver. Thanks to aRTK function and Atlas® correction service, Stonex S990A is also able to work in particularly difficult areas. Atlas® delivers world wide centimeter level correction data through L-band communication satellites.

1PPS can be applied to scenarios that require precise synchronization time to ensure that multiple facilities work together or that use the same parameters for system integration based on precise time.

What are the performances of the S990A with IMU?

  • No problem of electromagnetic disturbances
  • Fast initialization
  • Up to 60° inclination
  • 2 cm accuracy 30°
  • 5 cm accuracy 60°
  • Fast and precise survey
  • Stonex S990A with IMU system makes reliable every measurement, both survey and the stake out jobs, and makes extremely faster the acquisition of points: up to 40% of the field work time can be saved!

    MULTI CONSTELLATION

    Stonex S990A with its 800 channels, provides an excellent on board real time navigation solution with high accuracy. All GNSS signals ((GPS, GLONASS, BEIDOU, GALILEO, QZSS and IRNSS) are included, no additional cost.

    IMU TECHNOLOGY

    On S990A is available the IMU technology. Fast initialization, up to 60° inclination.

    DOUBLE FREQUENCY RADIO

    S990A has integrated UHF double frequency radio, 410-470MHz and 902.4-928MHz. The needs of each country are supported.

    4G MODEM

    S990A has an internal 4G modem that operates with all world signals, a fast internet connection is guaranteed.

    COLOR TOUCH DISPLAY

    S990A comes with a convenient color touch display for easy management of the most important functions.

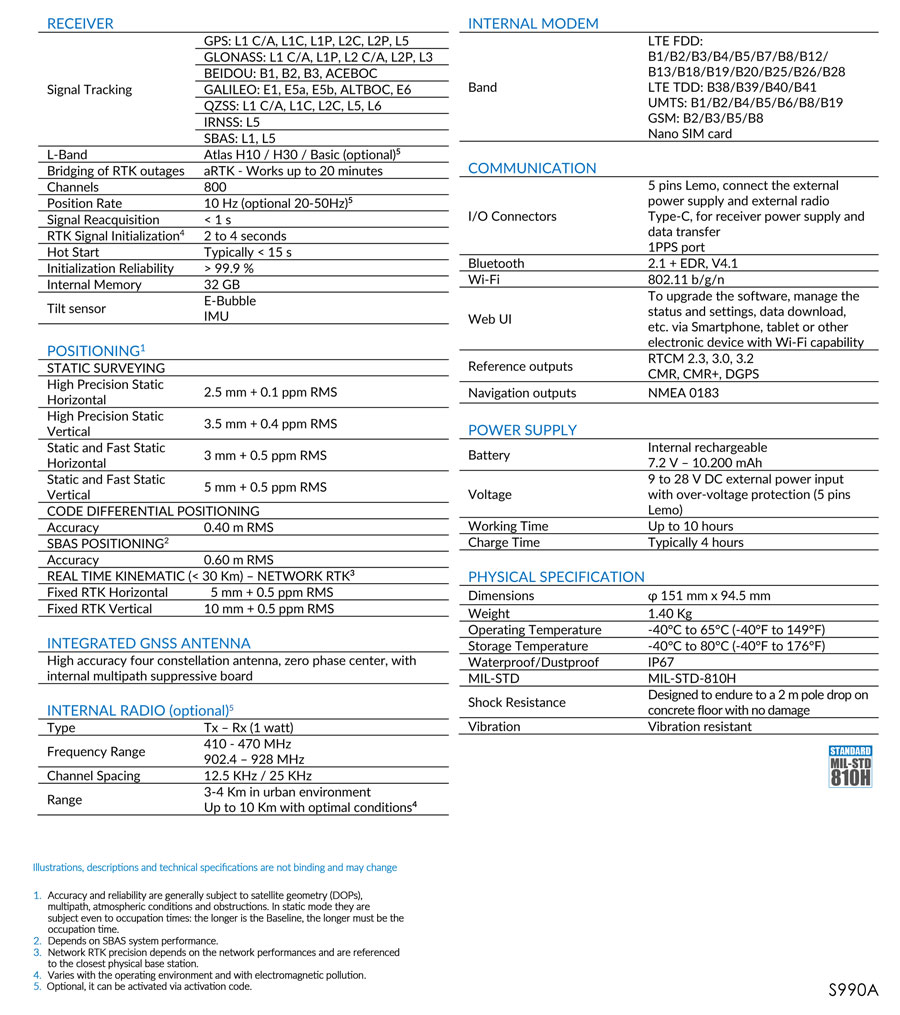

    Datasheet
